Ligand Attachment technology
Tosoh Bioscience applies three different ligand attach-
ment chemistries reflecting three generations of ligand
attachment technology. The “traditional” method, or first
generation of attaching the ion exchange ligand, is directly
to the resin surface through a proprietary spacer arm.
TOYOPEARL and TSKgel PW type ion exchange resins
using this traditional bead functionalization method are:
TOYOPEARL SP-650 and SP-550
TSKgel SP-3PW and SP-5PW
TOYOPEARL CM-650
TOYOPEARL Q-600C AR
TOYOPEARL Q-550
TOYOPEARL DEAE-650
TSKgel DEAE-5PW
TOYOPEARL MegaCap II SP-550EC
A second generation attachment chemistry (Type A noted in
Table IV) for increasing protein binding within the accessible
surface area, is to add a carbon spacer network between
the bead surface and the ligand. It is also possible to attach
ligand groups along the length of the spacer network thus
improving capacity. There are two resins which incorpo-
rates this type A ligand attachment chemistry:
TOYOPEARL SuperQ-650
TSKgel SuperQ-5PW
A third generation ligand attachment chemistry (Type B
noted in Table IV) improves the accessible location of the
ligand groups. The result of this modification is signifi-
cantly increased capacity and improved mass transfer.
Improved mass transfer also reduces the target molecule
elution volume. All TOYOPEARL GigaCap resins use this
Type B ligand attachment chemistry:
TOYOPEARL GigaCap S-650
TOYOPEARL GigaCap CM-650
TOYOPEARL GigaCap Q-650
TOYOPEARL GigaCap DEAE-650
Ion exchange
chromatography

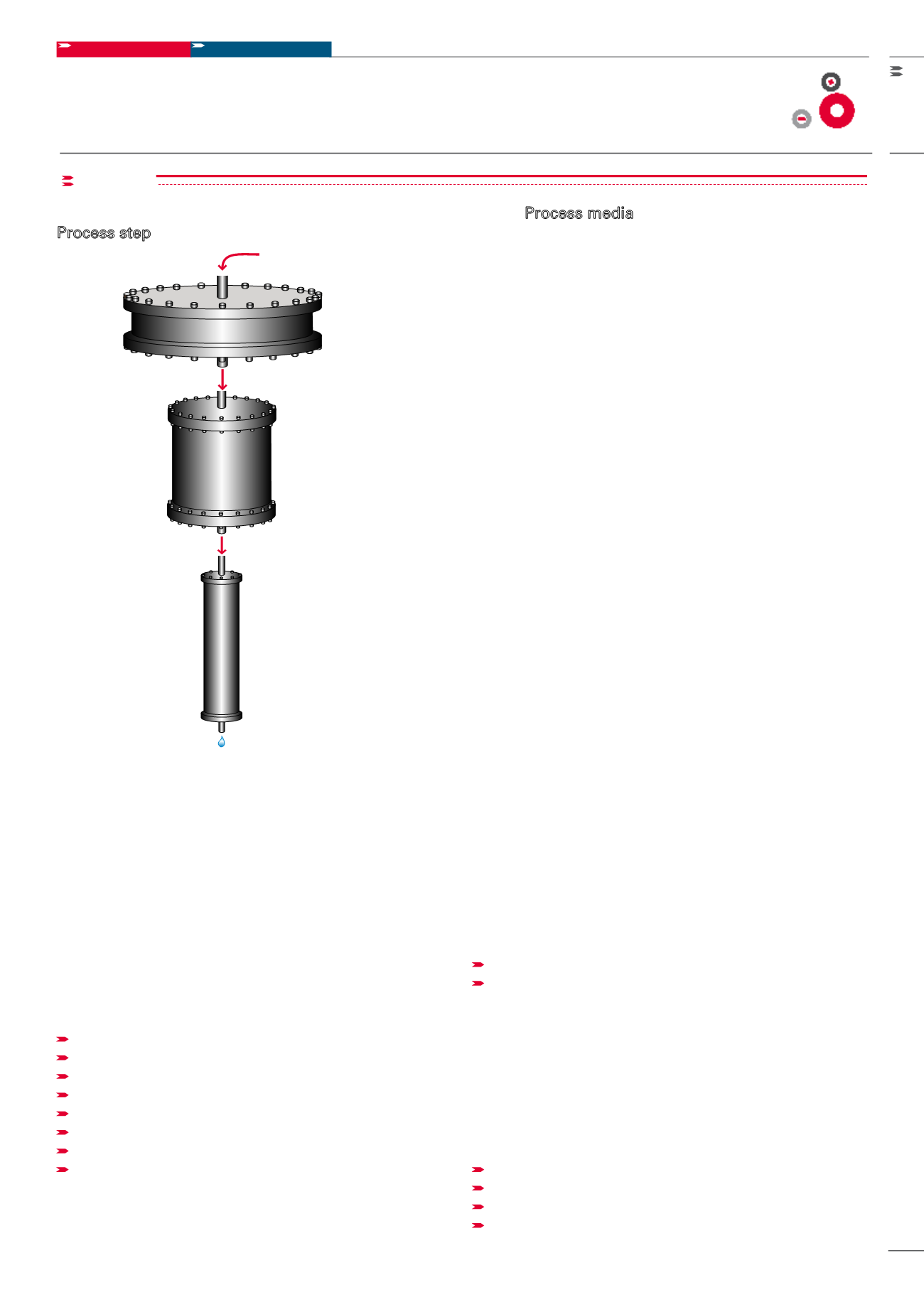

Figure 4
Pure Product
Capture
Intermediate
Purification
Polishing
QC
